Maxxima Rectangular Red Stop/Turn/Tail

Description

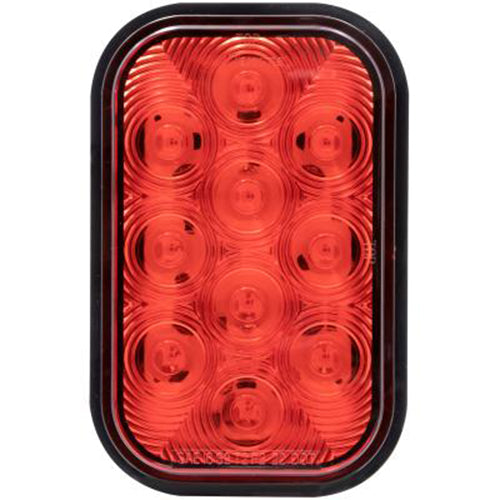

The M42213R-A is a 5" X 3" rectangular red stop, turn, tail (STT) lamp. It fits industry standard rectangular grommets, such as M49700, and has a standard 3-pin PL-3 connector integrated into the housing. This light features an acrylic lens and polycarbonate housing and is backed by a 5-year warranty.

FEATURES & BENEFITS

• DOT FMVSS108 Compliant Horizontal Or Vertical
• Integrated PL-3 3 Pin Connector
• Acrylic Lens
• Polycarbonate Housing
• 5 Year Warranty
• Replaces M42201R
• Replaces M42213R

SPECIFICATIONS

• LEDs: 10
• Voltage: 12.8VDC
• Amp Draw: 250 MA / 20mA
• Dimensions: 5.3" W X 3.4" H X 1.3" D
• Mounting: Rectangle Grommet (M49700)
• Connector: PL-3
• Legal Heading: I6 S2 T2 P2
• DOT/SAE: J592, J2040, J2261
