Maxxima Rectangular Red Clear Lens STT 10 LED

Description

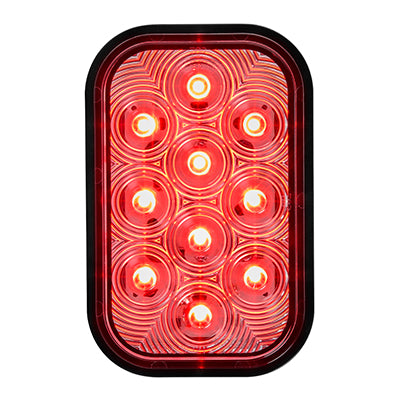

The M42213RCL-A is a 5″ X 3″ rectangular red with clear lens stop, turn, tail (STT) lamp. It fits industry standard rectangular grommets, such as M49700, and has a standard 3-pin PL-3 connector integrated into the housing. This light features an acrylic lens and polycarbonate housing and is backed by a 5-year warranty.

Features & Benefits:

• DOT FMVSS108 Compliant Horizontal or Vertical
• Clear Lens for stealth look in the off position – lights up red
• Integrated PL-3 3 Pin Connector
• Acrylic Lens
• Polycarbonate Housing
• 5 Year Warranty

Specifications:

• LEDs: 10
• Voltage: 12.8VDC
• Amp Draw: 250 mA / 20mA
• Dimensions: 5.3″ W x 3.4″ H x 1.3″ D
• Mounting: Rectangle Grommet (M49700)
• Connector: PL-3
• Legal Heading: I6 S2 T2 P2
• DOT/SAE: J592, J2040, J2261
