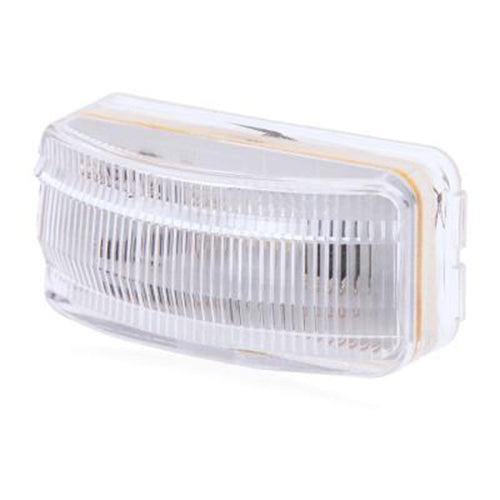

Maxxima LED License Light 2 ½” X 1” Rectangular with .180 Male Bullet

Description

The M25301L is a LED License Light designed to be a drop-in replacement for 2.5" X 1" Rectangle snap-in bases. It is plug-in ready with two 0.180" Male Bullet Connectors.

M25301L is DOT FMVSS108 compliant for 1-lamp systems in either top mount or side mount configurations. The optional M50250 Mounting Bracket is sold separately. It can also be used as an interior courtesy light with optional M20325 or M20328 base sold separately.

M25301L features a polycarbonate lens and housing and is backed by a 5-year warranty.

FEATURES & BENEFITS

• DOT FMVSS 108 Compliant LED License Light
• LED License Light or Courtesy Light
• 1-Lamp System - Top or Side Mount
• Polycarbonate Lens and Housing
• Lights and Brackets Sold Separately
• Retail Pack or Bulk Pack Available


SPECIFICATIONS

• LEDs: 4
• Lumens: 50
• Voltage: 12.8 VDC
• Amp Draw: 60mA
• Dimensions: (Light Only) 2.5"W x 1.2"H x 1.1"D, (M50250 Bracket) 3.4"W x 2.6"H x 2.2"D
• Connector: 2 Male .180 Bullets, 10"
• Legal Heading: L
• DOT / SAE: FMVSS108/CMVSS108, SAE J587
