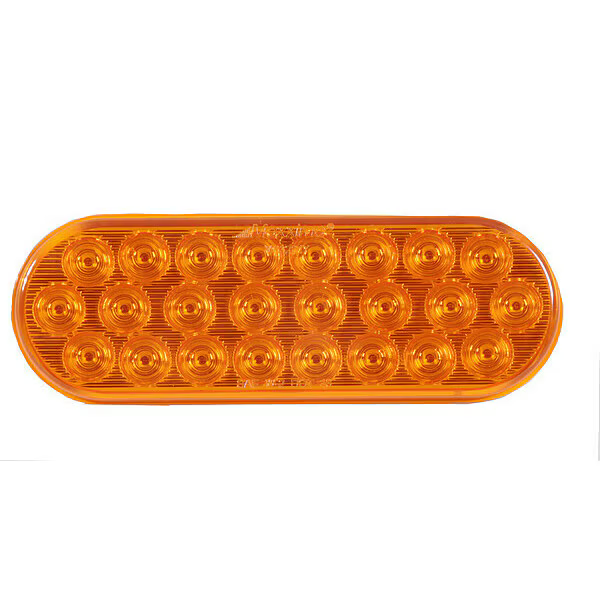

Maxxima 6" Oval Amber Turn & Warning Light Series 24 LED

Description

The M63201Y-A is a multi-function 6” oval amber flashing warning light and DOT compliant amber turn signal.  As a warning (or strobe) light, it complies with SAE J595 Class 1 and contains 28 programmable flash patterns.  As a Park/Turn signal lamp, it complies with DOT FMVSS108, SAE J222, and J2261.  It fits a standard 6” grommet (M50600-B sold separately) and features an integrated, industry standard, PL-3 plug and 2 additional wires allowing dedicated wires for the warning function as well as the turn signal function. It also has 5 programmable priority modes allowing turn signal override, or warning light override.  This light features a polycarbonate lens & housing, and is backed by a 5-year warranty.

Features & Benefits:

• Combination Amber Flashing Warning
  And DOT Compliant Park / Front / Rear Turn
• SAE J595 Class 1 Flashing Amber Warning
• 28 Programmable Flash Patterns
• Discrete Wiring – Dedicated Turn Signal Circuit and Warning Circuits
• 24 LEDs
• Fits Standard 6” Grommet (M50600-B Sold Separately)
• 5 Programmable Priority Modes Allows
  • Turn Signal Override
  • Or, Warning Override

Specifications:

• Voltage 12/24VDC
• Amp Draw Max: 0.9A 12V / 0.5A 24V
• Dimensions 6.3” W x 2.2” H x 1.2” D
• Mounting 6” Oval Grommet
• Connector PL-3 + 2 Wires, 11”
• LEDs 24
• Legal Heading P I6 I7, W1
• SAE J222, J2261, J595 Class 1
