Feniex 4200 DL Controller

Feniex 4200 DL Controller

$449.00 USD
$449.00 USD
Sale Sold out

Overview

  • 2 year warranty
  • 18 programmable 10-amp outputs
  • Output types: on/off, momentary, timer
  • 3-position programmable slide switch
  • 2-channel integrated headlight flasher
  • Programmable ignition, day and night mode inputs
  • Windows programming software (see Downloads tab)
  • Activation confirmation: green backlit buttons turn red upon activation
  • Made in the USA

Specifications

  • Short Circuit Protection
  • Over Temperature Protection
  • RJ45 Cable: 15 Feet
  • Input Voltage: 12 Volts
  • Max Current Output: 60A
  • Relay Dimensions 6.3” L x 3.3” W x 1.5” H
  • Controller Dimensions 6.8” L x 3.5” W x 1.3” H
  • Made in the USA

Instructions:

Included:

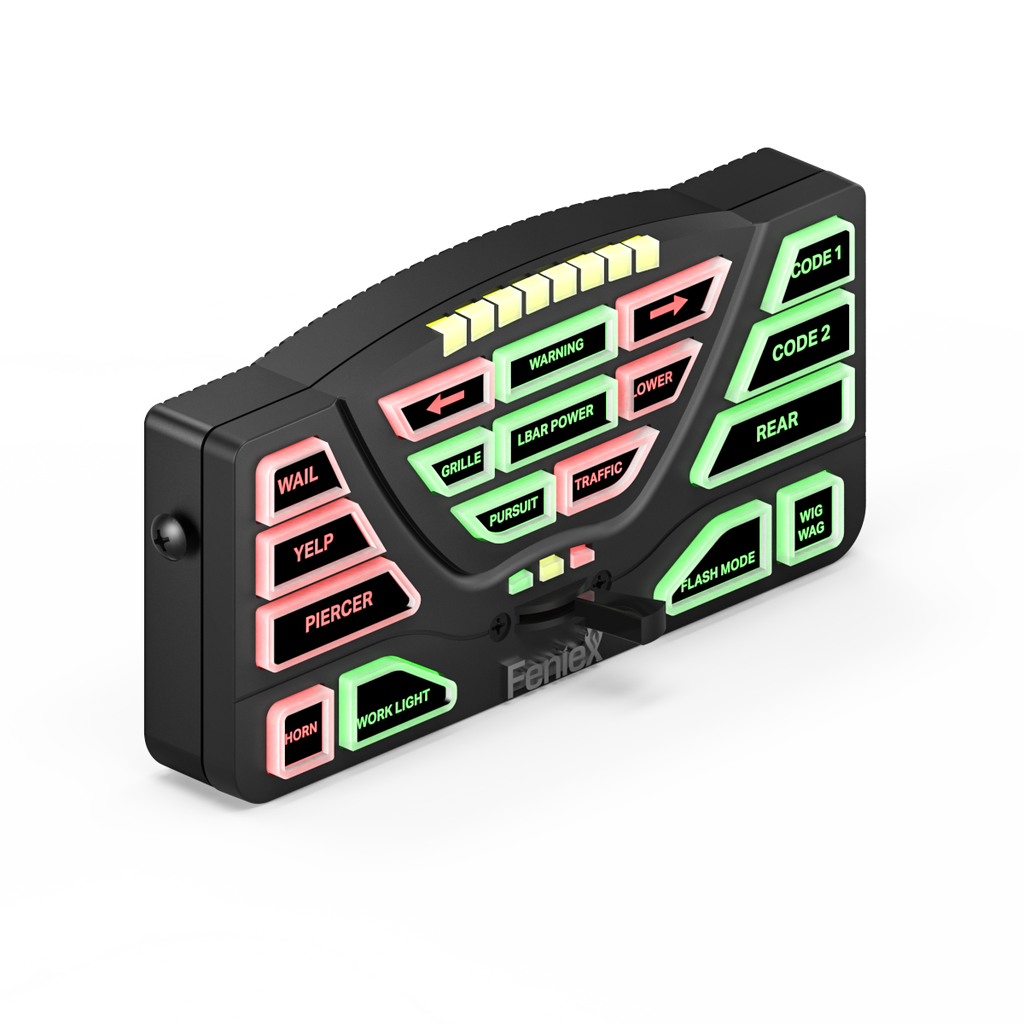

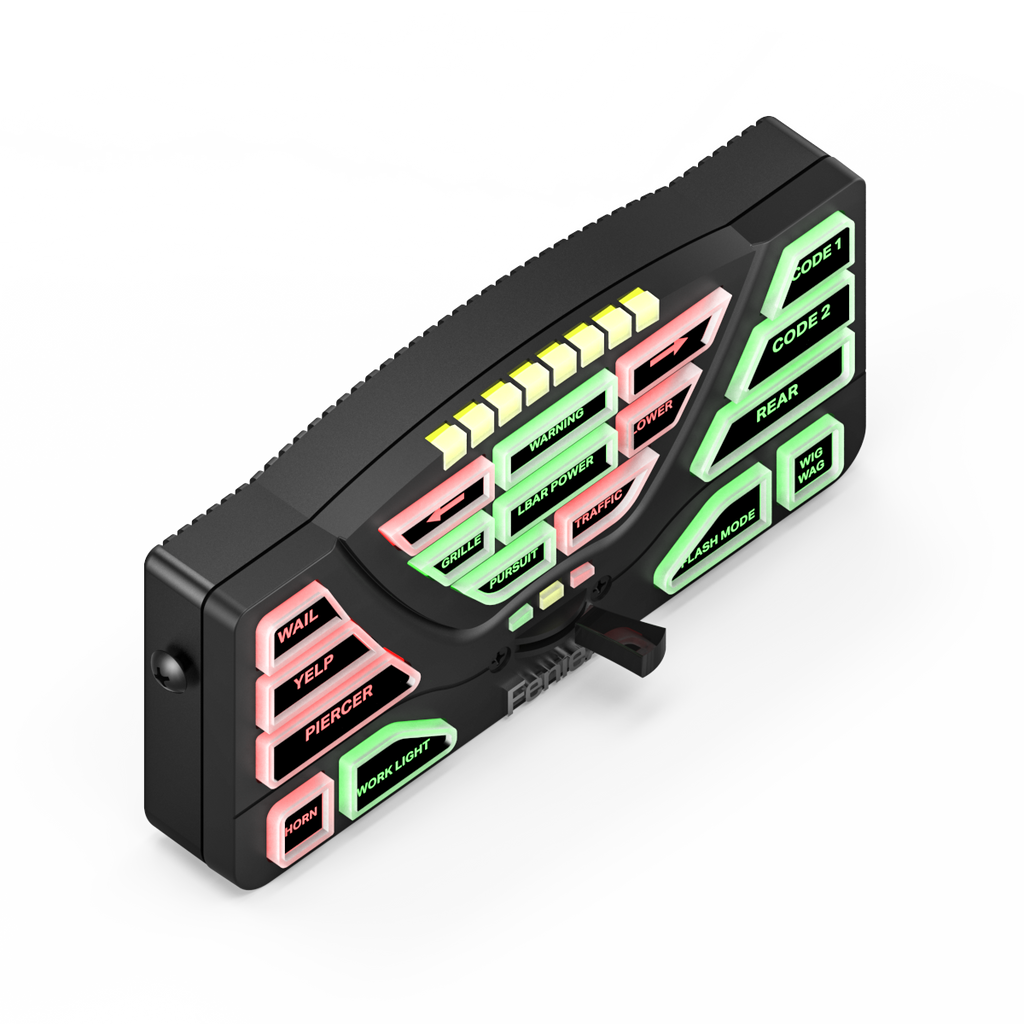

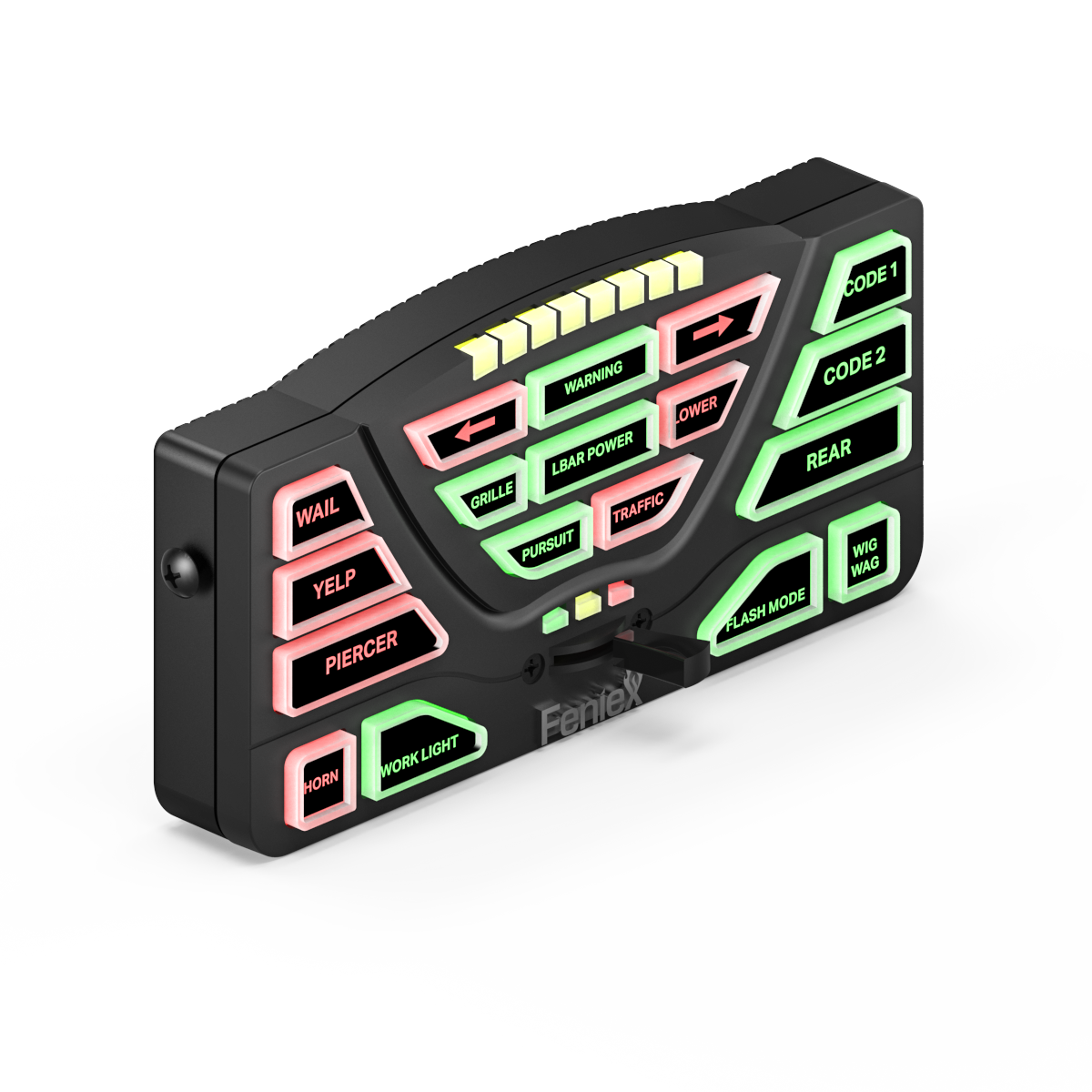

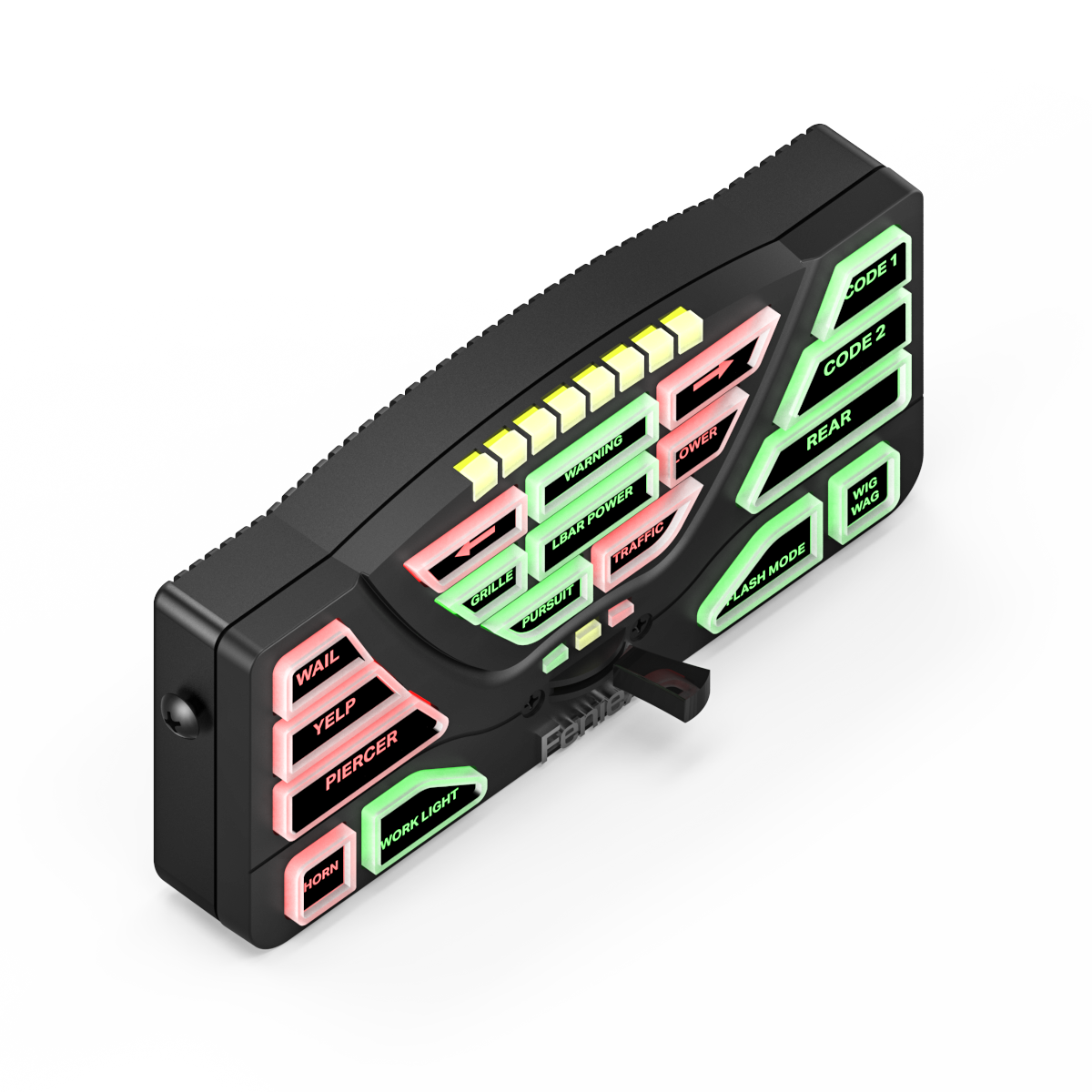

  • 1x 4200 Keypad

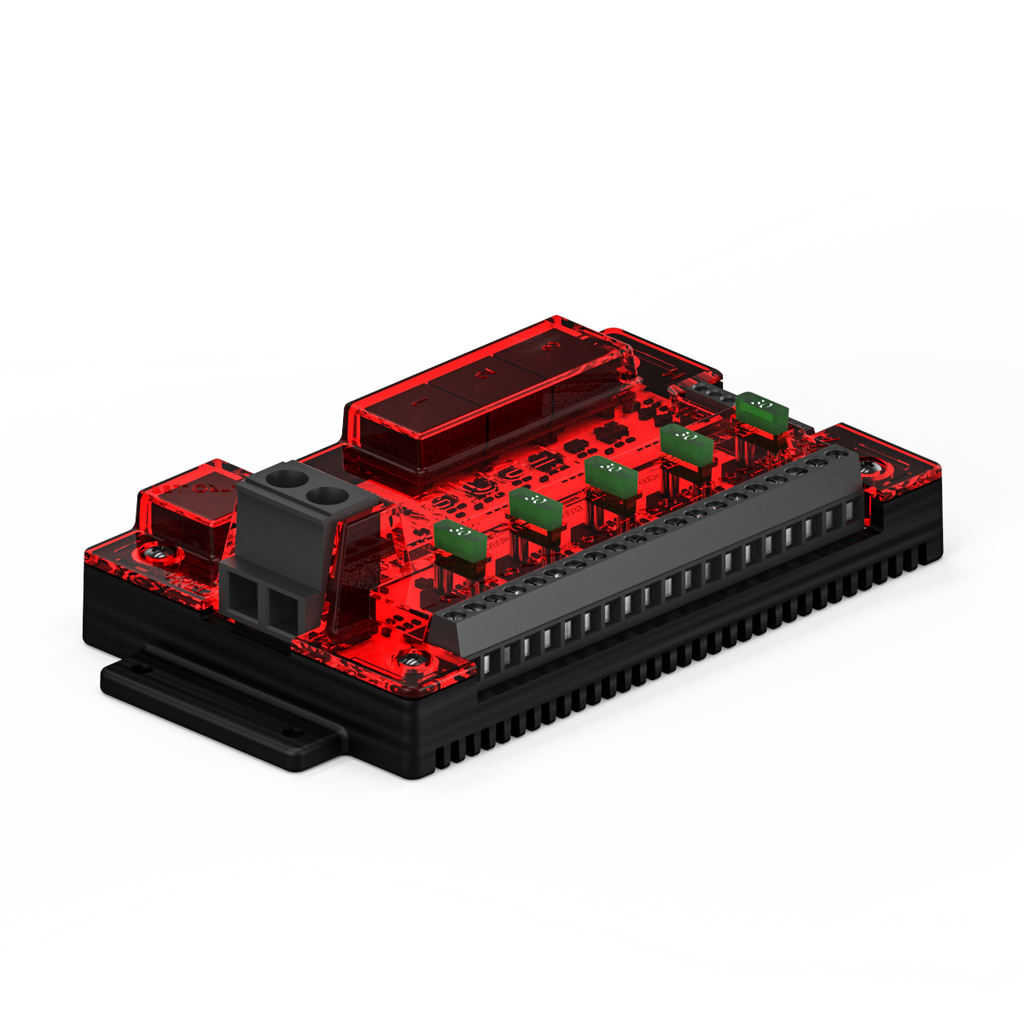

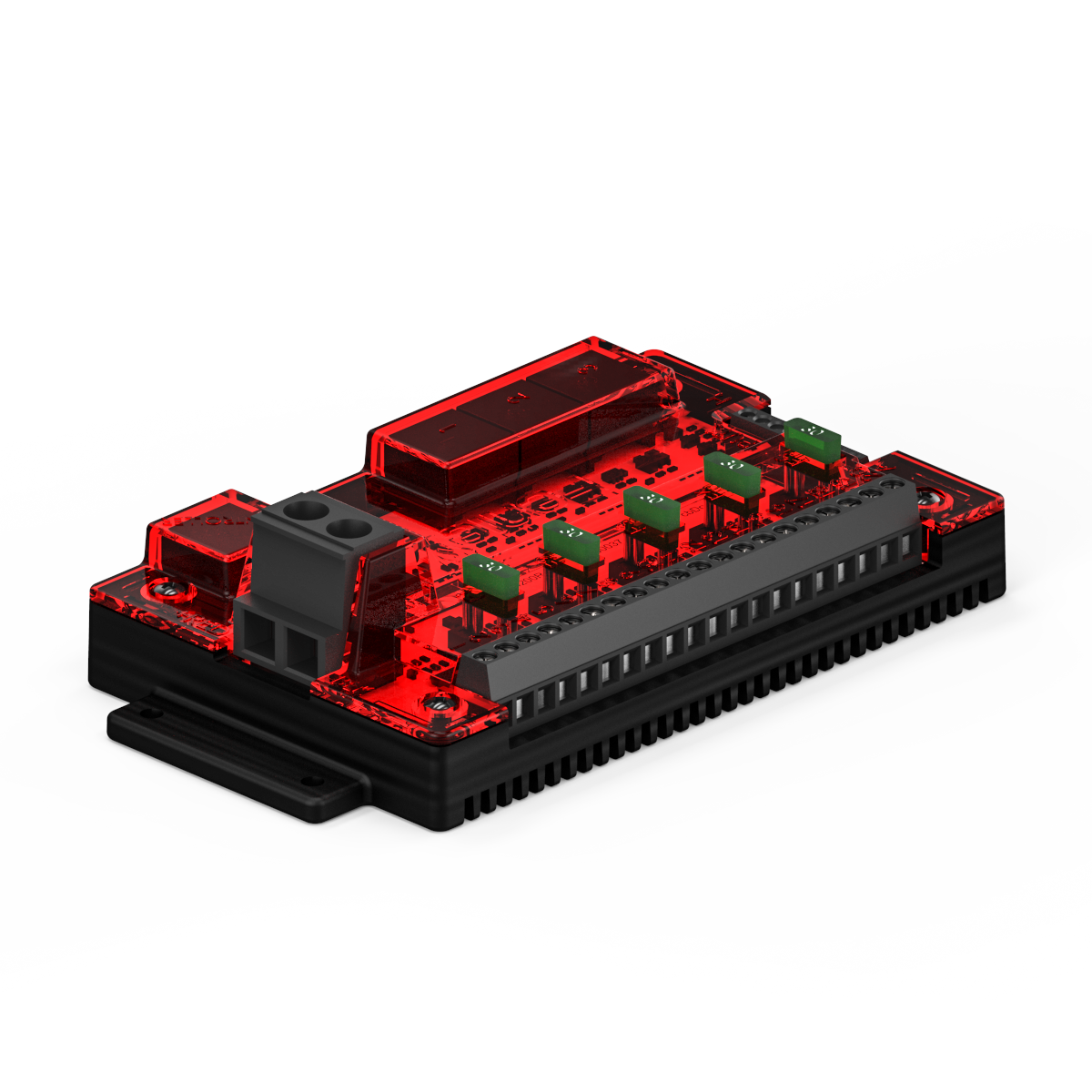

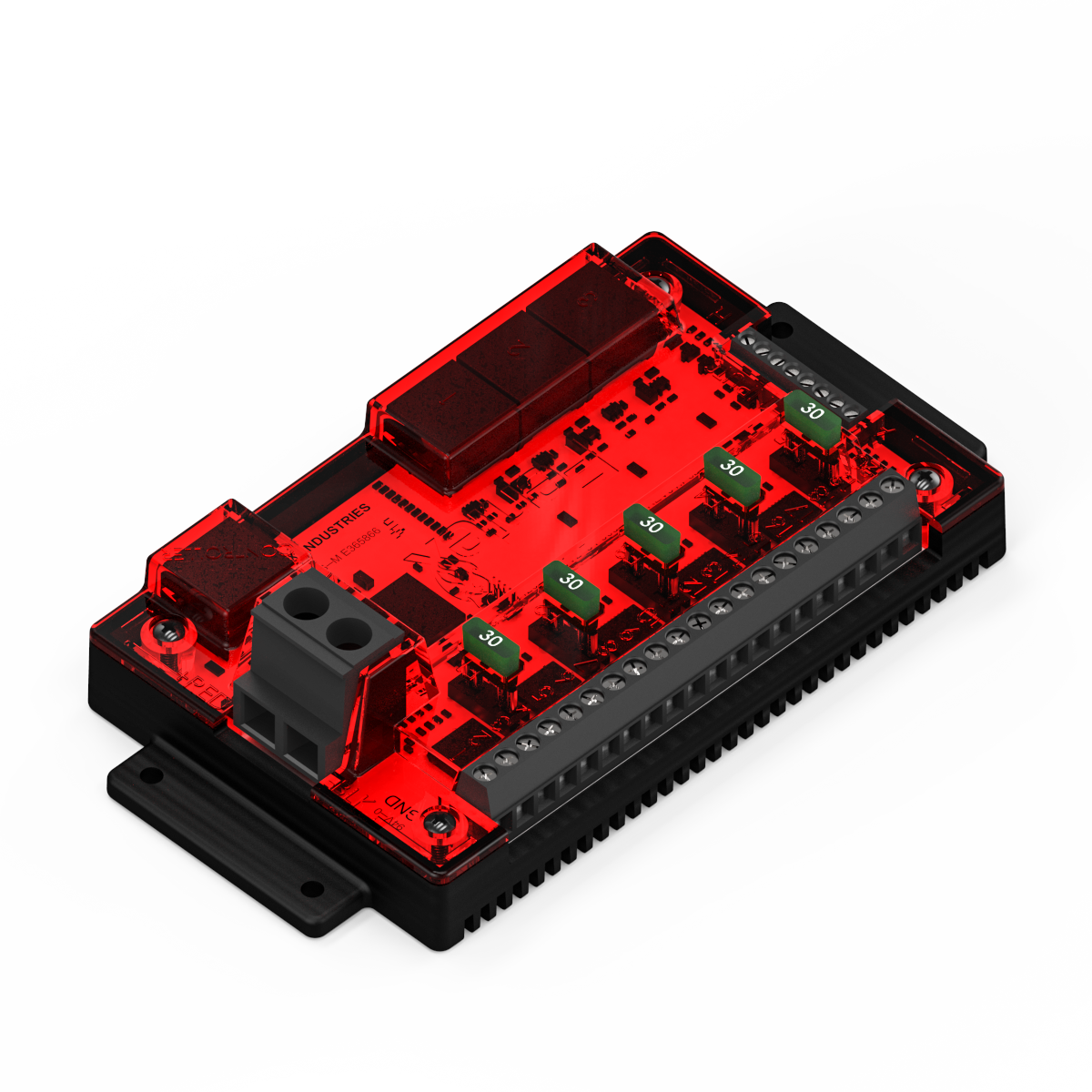

  • 1x Relay
  • 1x U-Shaped Mounting Bracket
  • 1x USB Cable
  • 2x RJ45 Cables
  • 4x Button Legend Sheets

Description

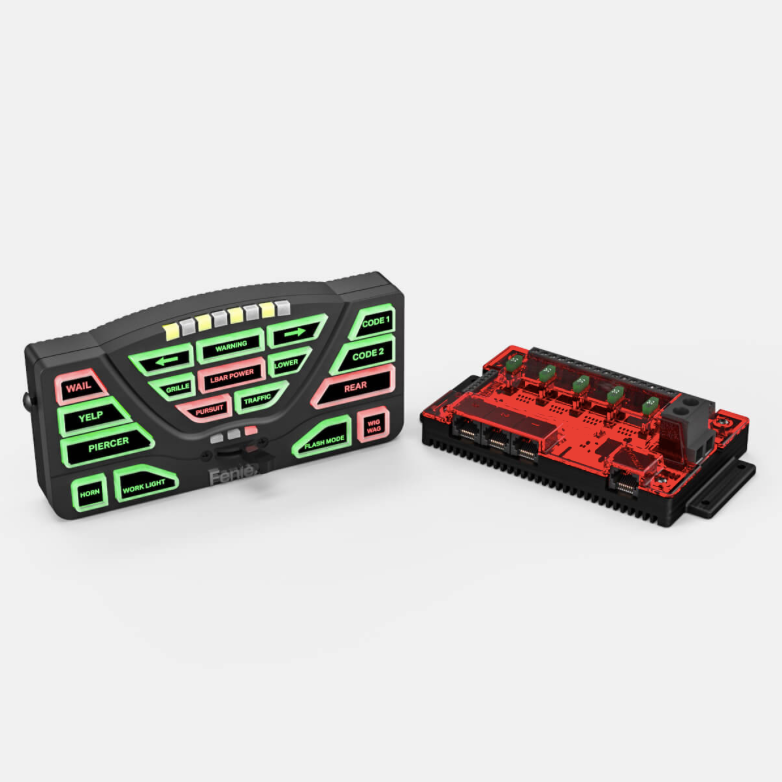

The most powerful controller in the warning industry, the 4200 Datalink Controller is ideal for any emergency vehicle. Universally compatible and fully programmable, the 4200 DL can control your vehicle's entire lighting and siren system. Connects easily to the Feniex StormPro Siren or Fusion Series lightbar by using one of three Datalink ports.
