Blue Sea Fuse Block 6 Circuit with Ground Bus (Negative)

Blue Sea Fuse Block 6 Circuit with Ground Bus (Negative)

$34.99 USD
$34.99 USD
Sale Sold out

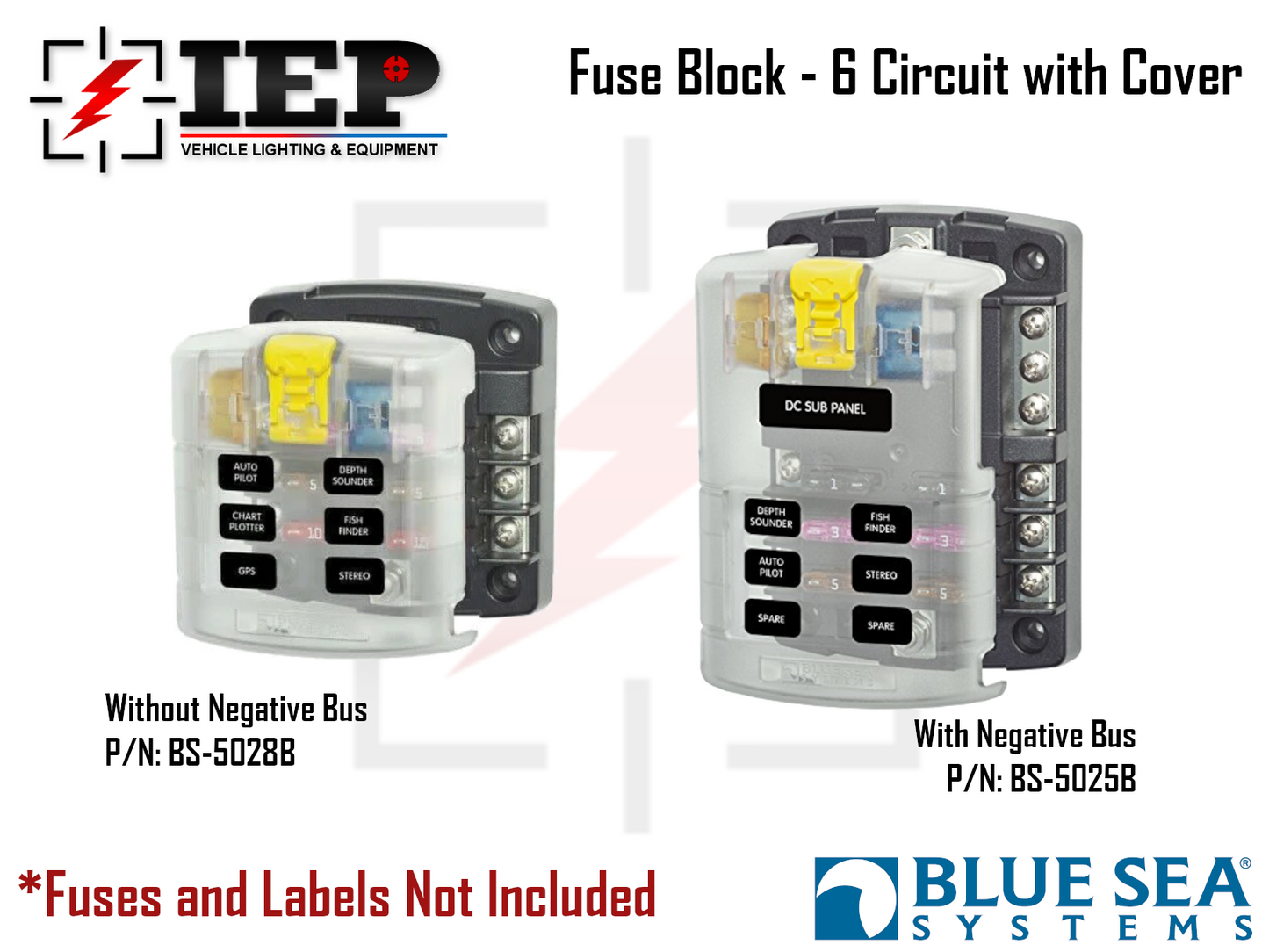

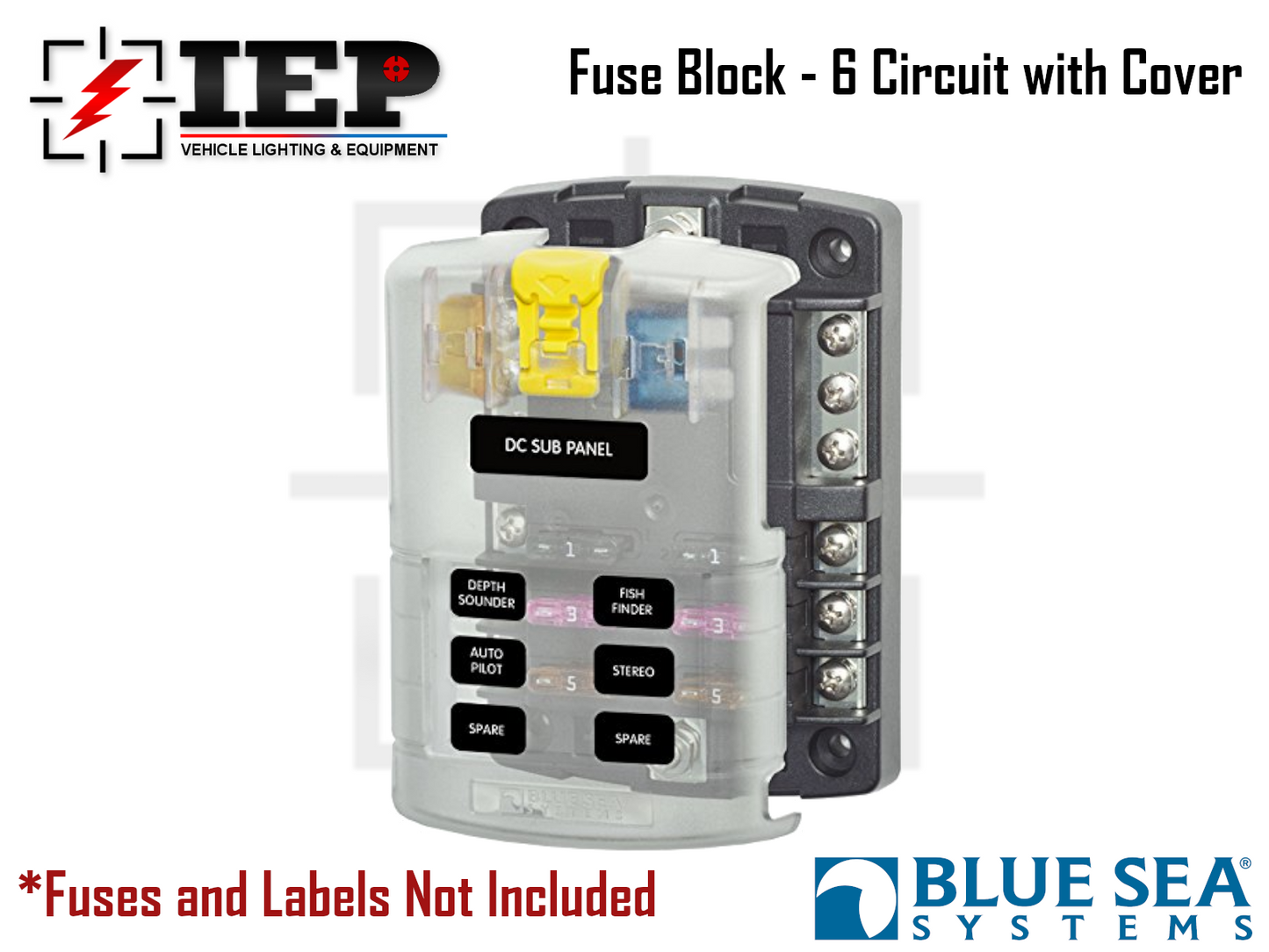

ST Blade Fuse Block - 6 Circuits with Negative Bus and Cover
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses and Labels sold separately

    Circuits 6
    Maximum Amperage  100A per block
    30A per circuit
    Maximum Voltage 32V DC
    Mounting #8 Screw (M4)
    Negative Bus #10-32 Stud
    Positive Bus #10-32 Stud
    Recommended Torque 24 in-lb (2.71 N·m)
    Screw Terminal Torque 18 in-lb (2.03 Nm)
    Screw Terminal Type #8-32 Screws with captive star lock washer
